16000 Series
Download
Contact Us
Share to
Hot tags: 16000 series bearing,China, manufacturers, suppliers, factory, specifications, dimensions, high quality, buy, price.
>>
<<

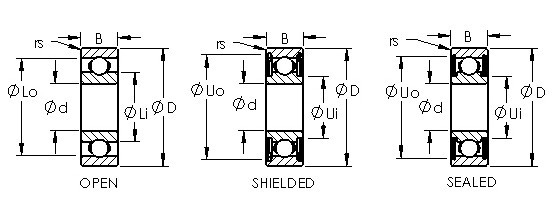

| Select | Inquiry | Product Number | d | D | B | Basic load ratings (N) | Limiting speeds (X1000 RPM) | ||
|---|---|---|---|---|---|---|---|---|---|
| Cr | Cor | Oil | Grease | ||||||
| 16100 | 10 | 28 | 8 | 4582 | 1957 | 34 | 29 | ||
| 16001 | 12 | 28 | 7 | 5099 | 2392 | 30 | 26 | ||
| 16101 | 12 | 30 | 8 | 5116 | 2402 | 30 | 26 | ||
| 16002 | 15 | 32 | 8 | 5605 | 2825 | 26 | 22 | ||
| 16003 | 17 | 35 | 8 | 6806 | 3359 | 24 | 20 | ||
| 16004 | 20 | 42 | 8 | 9386 | 5071 | 21 | 18 | ||
| 16005 | 25 | 47 | 8 | 10053 | 5872 | 18 | 15 | ||
| 16006 | 30 | 55 | 9 | 13212 | 8274 | 15 | 13 | ||
| 16007 | 35 | 62 | 9 | 16014 | 10298 | 14 | 12 | ||
| 16008 | 40 | 68 | 9 | 16681 | 11566 | 12 | 10 | ||
| 16009 | 45 | 75 | 10 | 20907 | 15125 | 11 | 9.2 | ||
| 16010 | 50 | 80 | 10 | 21797 | 16681 | 9.8 | 8.4 | ||
| 16011 | 55 | 90 | 11 | 28247 | 21352 | 9 | 7.7 | ||
| 16012 | 60 | 95 | 11 | 29404 | 23132 | 8.3 | 7 | ||
| 16013 | 65 | 100 | 11 | 30472 | 25133 | 7.7 | 6.5 | ||
| 16014 | 70 | 110 | 13 | 38034 | 30916 | 7.1 | 6.1 | ||
| 16015 | 75 | 115 | 13 | 39456 | 33585 | 6.7 | 5.7 | ||
| 16016 | 80 | 125 | 14 | 47598 | 39813 | 6.2 | 5.3 | ||
| 16017 | 85 | 130 | 14 | 49377 | 43149 | 5.9 | 5 | ||
| 16018 | 90 | 140 | 16 | 58274 | 49822 | 5.6 | 4.7 | ||
>>
<<
