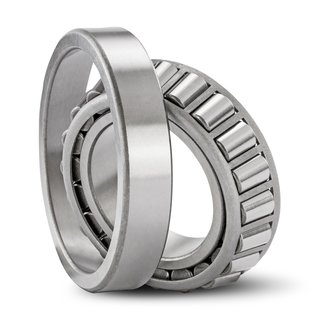

Tapered roller bearings have tapered inner and outer raceways and rollers to handle simultaneous radial and thrust loads. Their axial load carrying capacity is directly related to the contact angle of the rollers and raceway shaft.

They are available in single-row, double-row, and four-row designs. The individual parts of tapered roller bearings are commonly sold separately as cups and cones. Cones contain the roller assembly and inner ring while cups include the outer ring. Full assembly units contain both the cup and cone. As separable bearings, different designs and sizes are available to accommodate a variety of applications.


Hot tags: inch tapered roller bearing,China, manufacturers, suppliers, factory, specifications, dimensions, high quality, buy, price.
>>
<<
SelectInquiryBearing DesignationDimension(mm)Basic load ratings (kN)Speed ratings(rpm)Weight
ConeCupdDTBCRrCrCorGreaseOil(Kg)
11590  11520  15.875  42.862  14.288  14.288  9.525  1.5 1.5 17.6 17.6 8500 12000 0.1
LM11749  LM11710  17.462  39.878  13.843  14.605  10.668  1.3 1.3 21.2 20.8 9000 13000 0.081
LM11949  LM11910  19.050  45.237  15.494  16.637  12.065  1.3 1.3 27.5 27.5 8500 12000 0.12
09067  09195  19.050  49.225  18.034 19.05 14.288  1.3 1.3 39.1 40 8000 11000 0.18
09074  09196  19.050  49.225  23.02 21.539 17.462  1.5 1.5 39.1 40 8000 11000 0.21
A6075  A6157  19.050  39.992  12.014  11.153  9.525  1.0  1.3  14.9  15.7  9500  13000  0.066
09067  09196  19.050  49.225  21.209  19.050  17.462  1.3 1.5 39.1 40 8000 11000 0.2
09074  09195  19.050  49.225  19.845  21.539  14.288  1.5  1.3  39.1 40 4300 8000 0.19
09074  09194  19.050  49.225  23.020  21.539  17.462  1.5  3.5  37.5  37.0  8500  11000  0.21
12580  12520  20.638  49.225  19.845  19.845  15.875  1.5  1.5  37.5  39.0  8200  11000
M12649  M12610  21.430  50.005  17.526  18.288  13.970  1.3 1.3 36.9 38 8000 11000  0.17
LM12749  LM12710  21.986 45.237  15.494  16.637  12.065  1.3 1.3 27.5 31 8000 11000 0.12
LM12749  LM12711  21.986  45.974  15.494  16.637  12.065  1.3 1.3 27.5 31 8000 11000 0.12
M12648  M12610  22.225  50.005  17.526  18.288  13.970  1.3 1.3 39.1  40.7  8500  11000  0.17
1280  1220  22.225  57.150  22.225  22.225  17.462  0.8  1.6  52.6  55.7  7600  10000
1755  1729  22.225  56.896  19.368  19.837  15.875  1.3 0.8 46 43.1  7600  10000
07093  07196  23.812  50.005  13.495  14.260  9.525  1.5  1.0  26.0  27.9  7600  10000
07097  07196  25.000  50.005  13.495  14.260  9.525  1.5 1.0  26.7  28.8  7900  11000  0.146
07100  07204  25.400  51.994  15.011  14.260  12.700  1.5 1.3 26.7  28.8  7900  11000  0.145
1780  1729  25.400  56.896  19.368  19.837  15.875  0.8  1.3  42.5  46.5  7200  9600
